Classic SINGLE Pocket Door System

£322.80 (Inc VAT)

Door size in mm or (feet/inch)

  • *

Wall Thickness

  • *

Optional Extras

Please select any optional extras for your pocket door system

  • *

Categories: , ,

Description

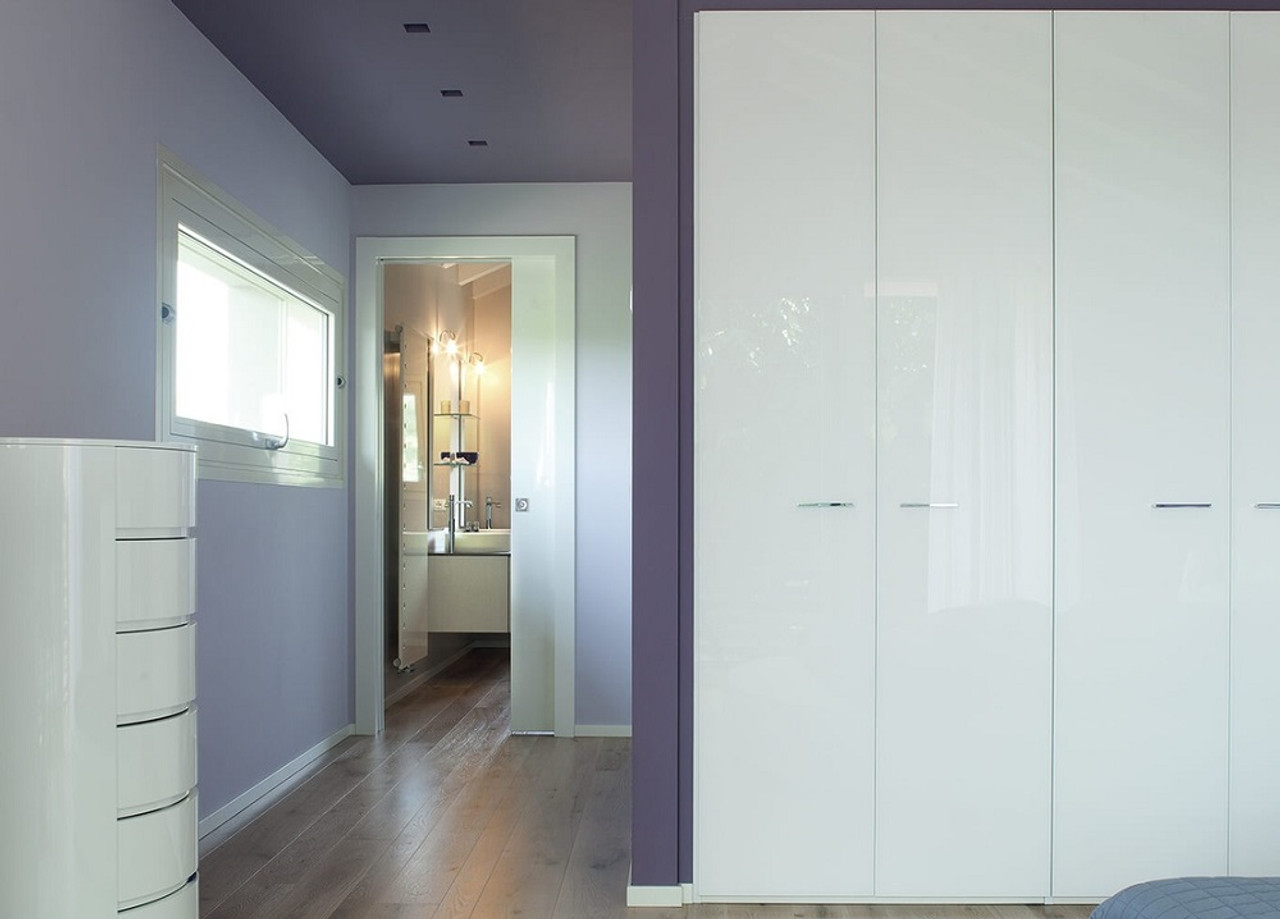

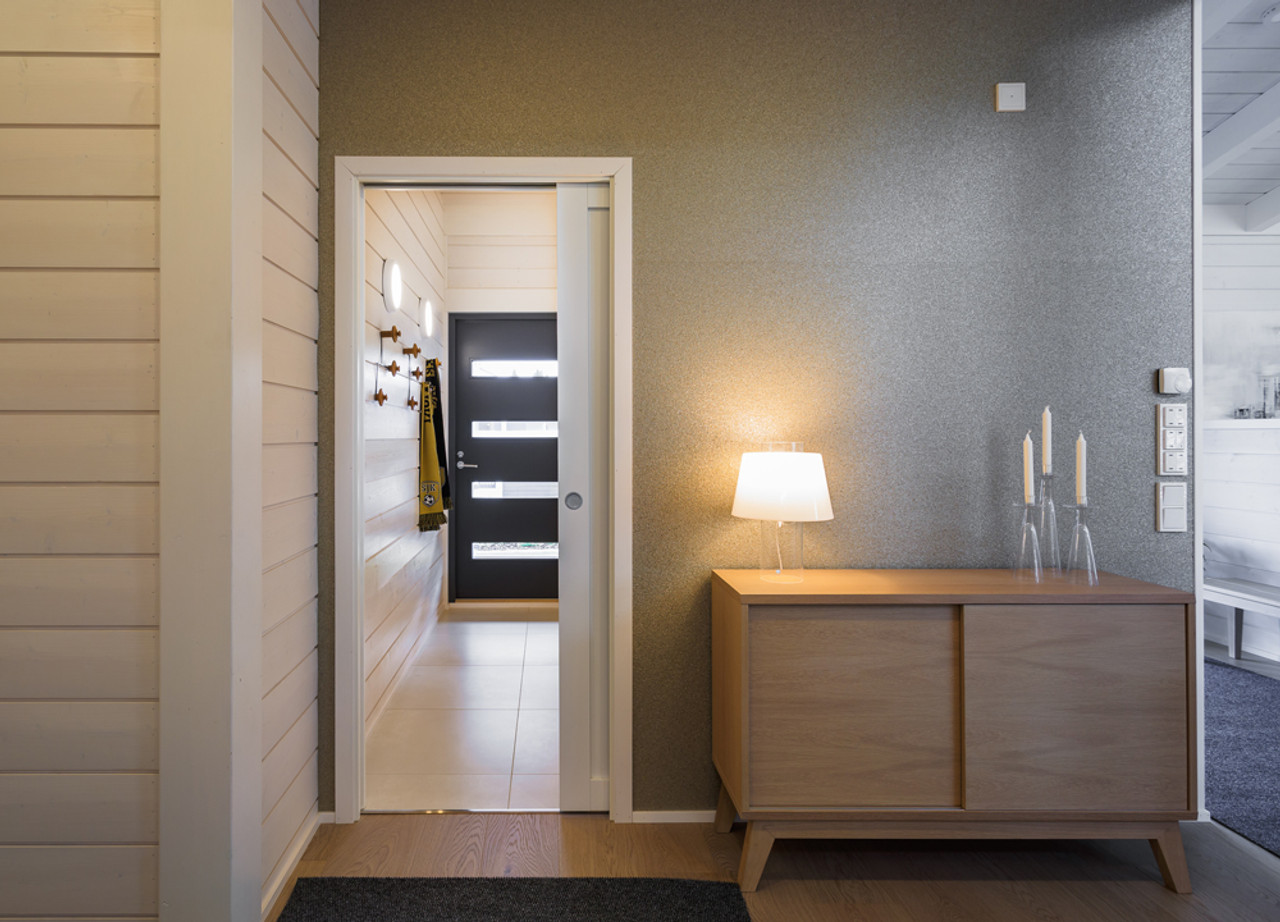

Single pocket doors offer a space-saving and stylish solution

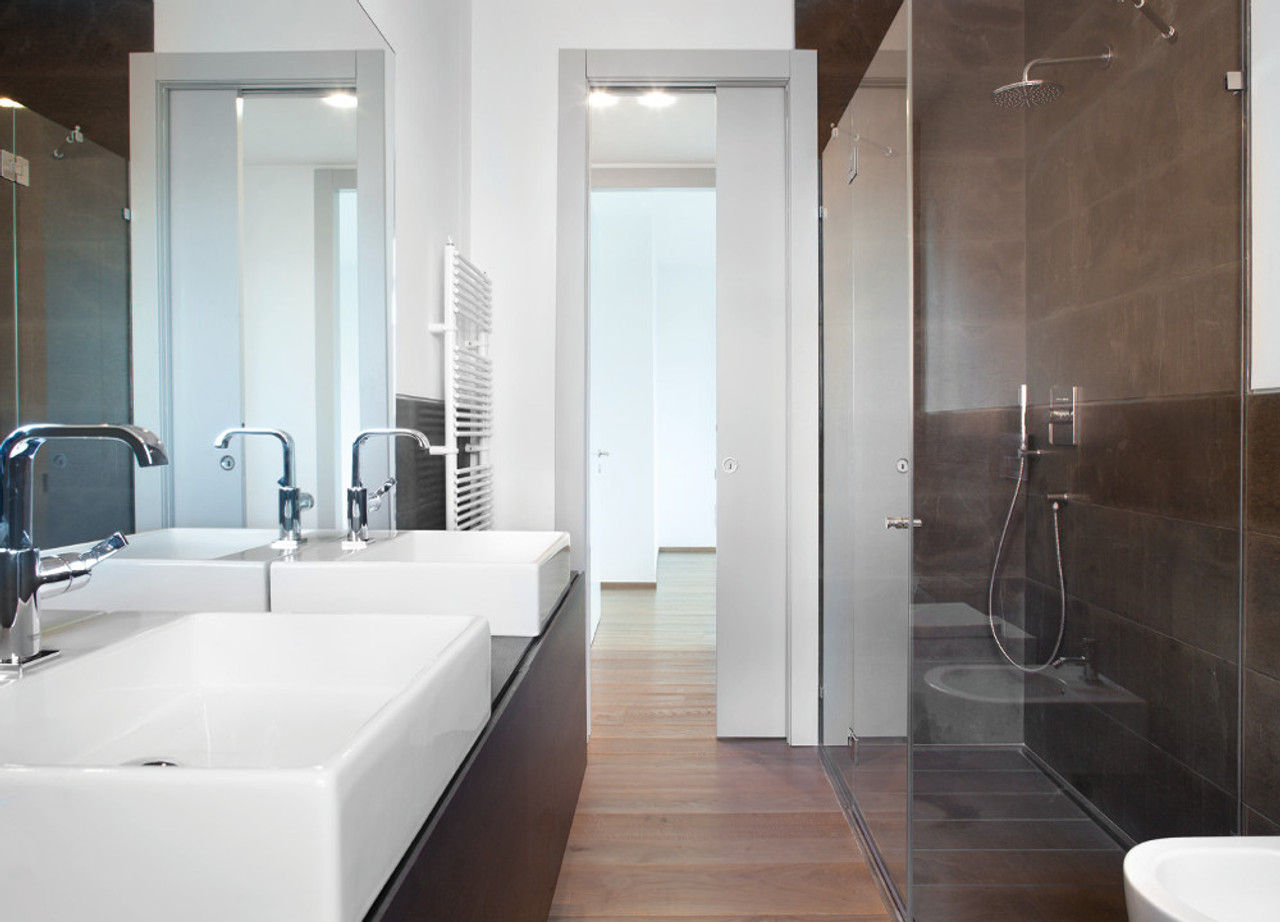

Sliding pocket doors are a perfect space-saving alternative to a traditional hinged door for downstairs toilets, utility rooms, bathrooms, en-suites, storerooms and pantries, walk-in wardrobes, in fact they are ideal for any room where you wish to maximise the usable floor space in a property. Just add your own 35 or 44mm door panel, 12.5mm standard plasterboard and decorative architrave for a perfectly finished pocket door.

A quick word about your studwork

When you choose an ECLISSE pocket door system the first thing to consider is matching your stud thickness to the right ECLISSE pocket door thickness and the table below shows you how to do this. Why are you looking to match it up? Because when it matches up, plaster boarding the pocket and the rest of the wall is as quick and easy as it possibly can be.

We recommend that you use either timber or metal stud in the table below. These are the most readily available stud work sizes and to make life easier we make frames to match.

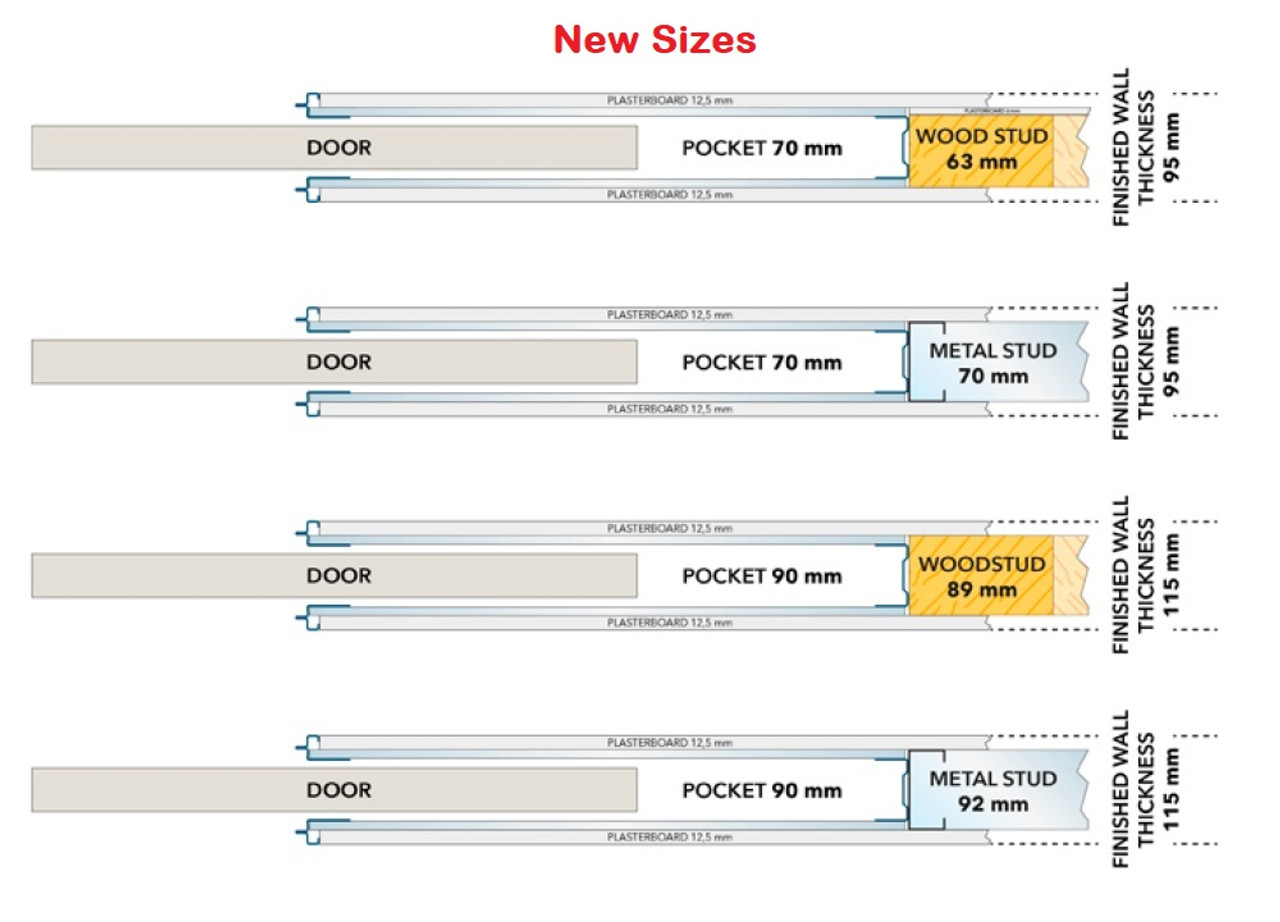

Timber Stud Nominal Size Actual Dimensions Best Fit Eclisse Pocket Door System Assemble frame to:

Plasterboard option for the pocket and for the stud work
CLS- Canadian Lumber Standard 3” x 2” / 75 x 50mm 63 x 38mm 95mm finished wall thickness 70mm pocket thickness


Click to see larger view
4” x 2” / 100 x 50mm 89 x 38mm 115mm finished wall thickness 90mm pocket thickness  89mm-stud.jpg

Click to see larger view
Scant/ construction timber 3” x 2” / 75 x 50mm 69/70 x 47*mm 95mm finished wall thickness 70mm pocket thickness

70mm-wood-stud.jpgClick to see larger view
4” x 2” / 100 x 50mm 94/95 x 47*mm 125mm finished wall thickness 100mm pocket thickness


Click to see larger view

*This dimension can vary

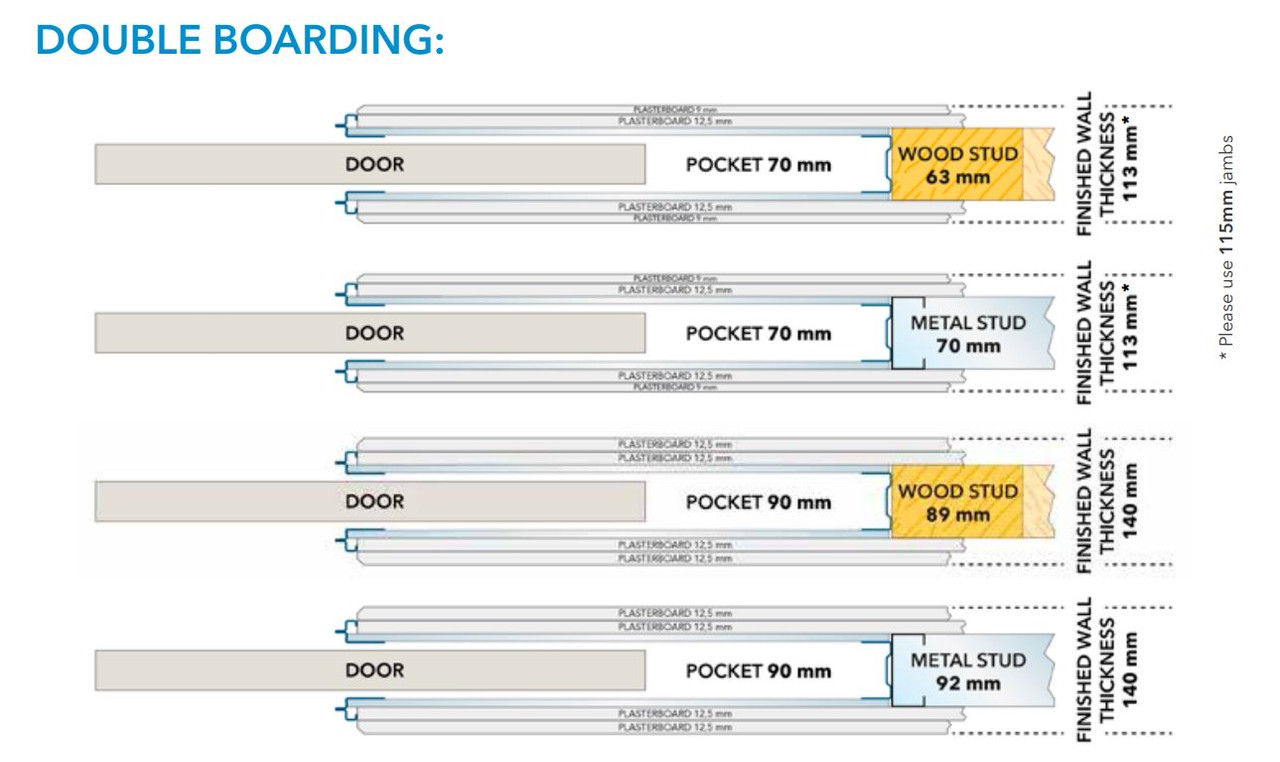

Click here to see full version of this table including metal stud and more options for plaster boarding as well as double boarding



Look at the relevant Technical Spec to determine your overall frame size/door panel size

Our pocket door systems come in standard overall frame sizes designed to perfectly fit a wide range of standard door panel sizes. Our technical specs give you all the information you need to decide on your choice of frame. You need to make sure you have enough overall space to build the stud work to accommodate and install the overall frame. You can then look at the range of overall frame sizes that will fit into the space you have available and the technical spec will tell you the door panel sizes that the different frames will accommodate.

Technical Specs:

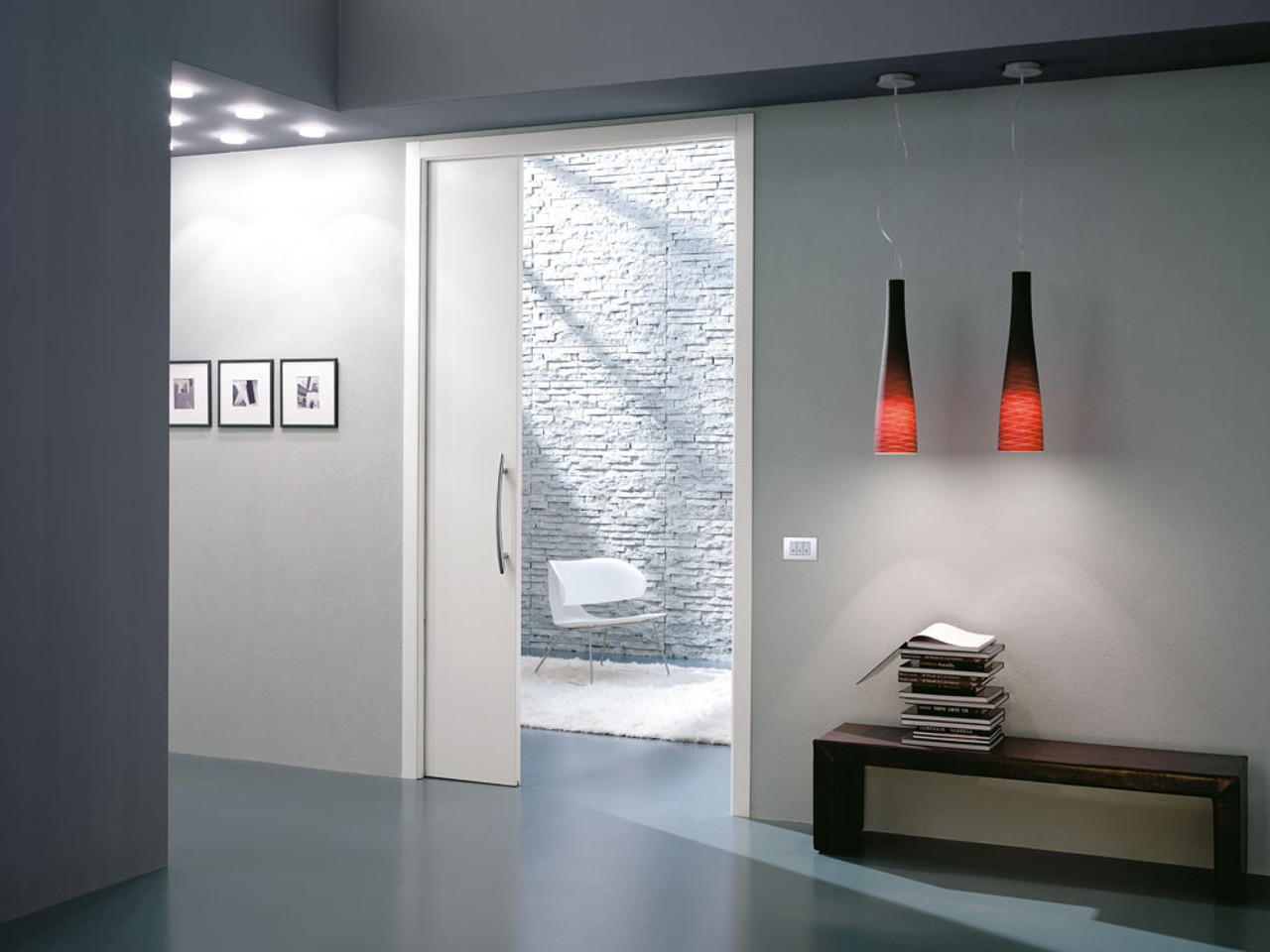

  • Need a non standard size? Call our friendly Customer Services Team on 0333 5770828 for a quote. Currently available in 100 & 125mm finished wall thickness other sizes coming soon.
  • Need a wider passage width (i.e. opening)?  Have a look at our double pocket door systems and our telescopic pocket door systems.

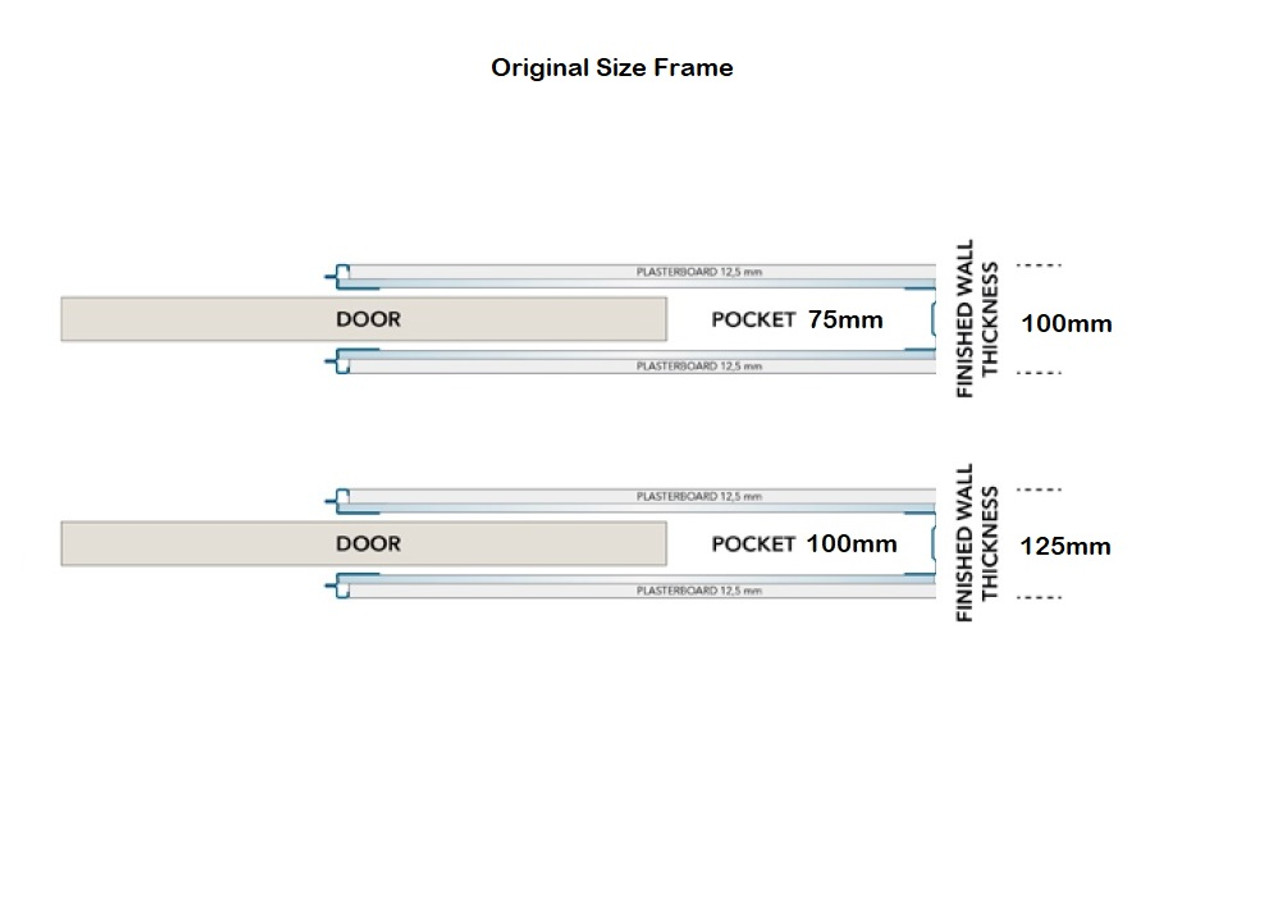

Assembling the frame to the wider pocket thickness i.e. 100mm or 95mm for finished wall thickness 125mm and 115mm respectively using the extension brackets

 DELIVERY

  • Order online before 1pm on a weekday for a next working day delivery for UK mainland.
  • FREE delivery to UK mainland for this frame and jamb and stock accessories or any pocket door furniture that is included in the same order.   For delivery to islands, Highlands, N Ireland and ROI please contact us.

 If you are looking for a fire-rated version have a look at our single and double FD30 pocket door systems.

Additional information

Door Panel Size (mm)

1026X2040, 610×1981 (2' 0" X 6' 6"), 626X2040, 686X1981 (2' 3" X 6' 6"), 711X1981, 726X2040, 762X1981 (2' 6" X 6' 6"), 813X2032, 826X2040, 838X1981 (2' 9" X 6' 6"), 864X2032, 914X1981 (3' 0" X 6' 6"), 926X2040
Finished Wall Thickness

100mm, 115mm, 125mm, 140mm, 95mm

Reviews

There are no reviews yet.

Be the first to review “Classic SINGLE Pocket Door System”

Your email address will not be published. Required fields are marked *

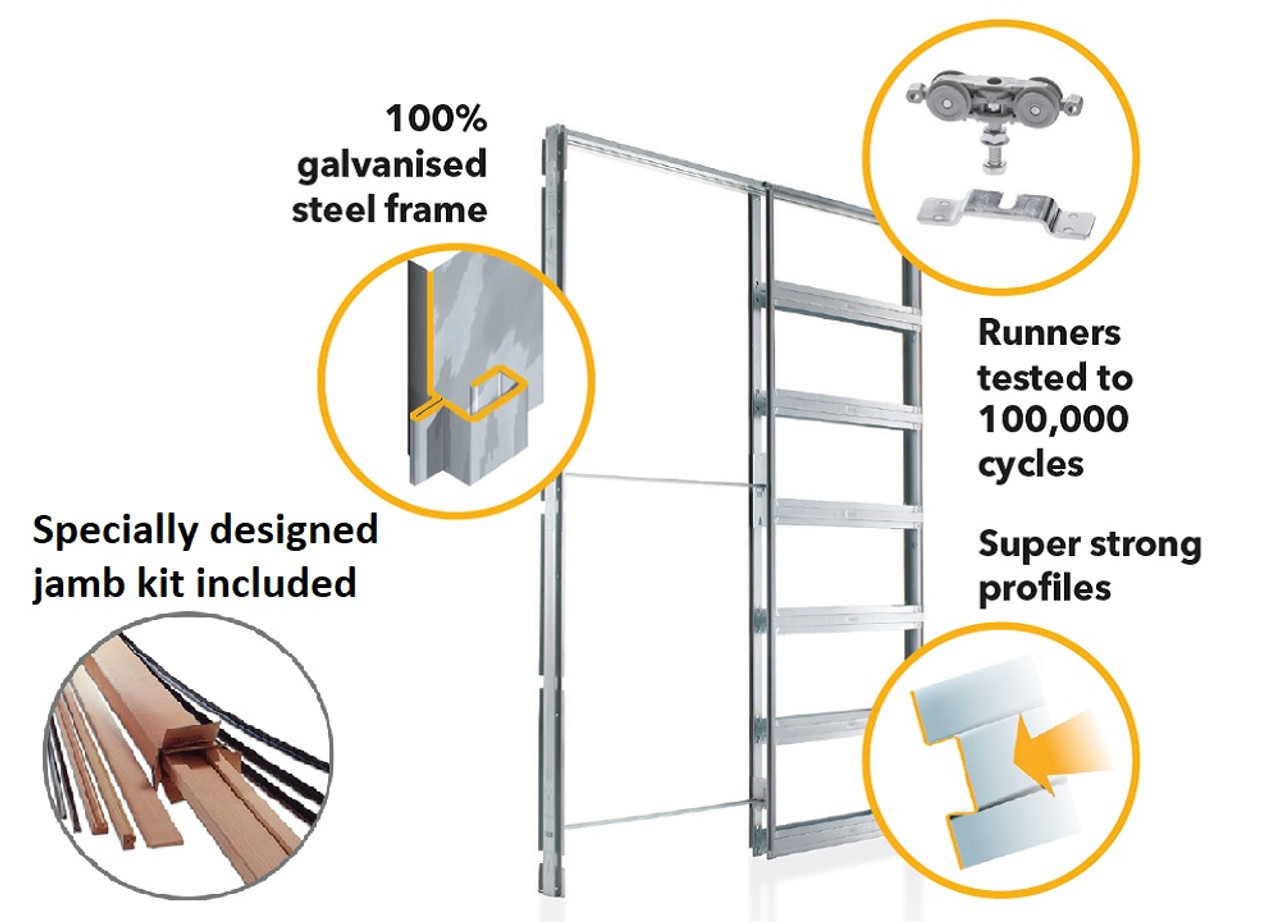

WHAT’S INCLUDED IN THIS KIT:
Galvanised steel frame Strong galvanised steel frame.  A quick-click frame that assembles into a complete unit comprising of a full pocket and a track.
Runners Runners are tested to 100,000 cycles (that’s around 25 years of average use!)
Extractable Track Track can be extracted without having to break into the wall. (See Tech Tips section in Technical tab for instructions).
Front and rear door stop Can be adjusted to determine how far the door protrudes from the pocket.
Metal anti-warp door profile                      Slots into a channel in underside of door. Not visible but ensures that if your door warps it continues to slide smoothly.
Self centering door guide Clicks into frame, doesn’t screw into the floor, so it is perfectly centred every time.
Fixings Even the screws to attach the plasterboard to the frame are included.

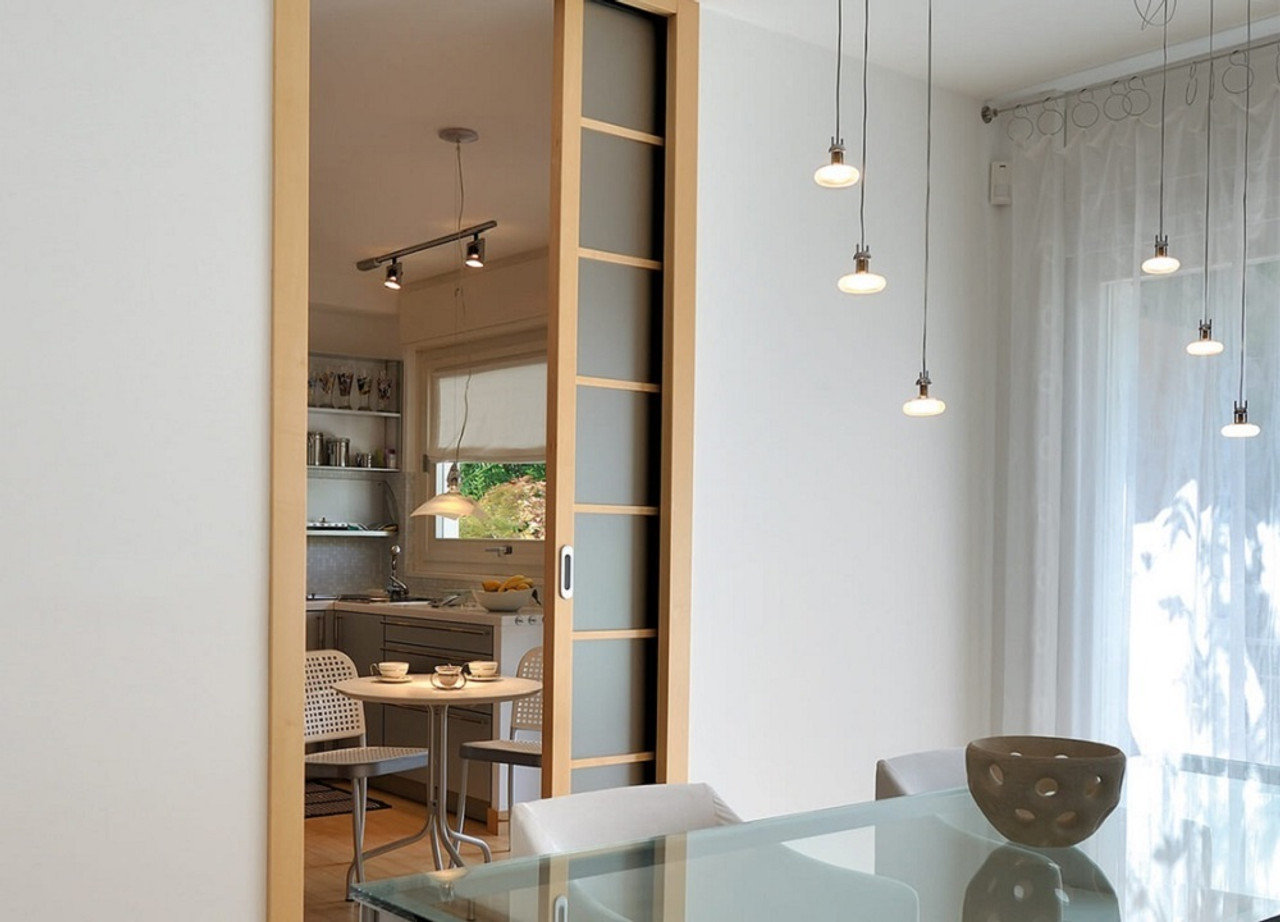

Jamb kit Comes complete with jamb kit made with a beechwood veneer* that is unfinished and paint/stain ready. The jamb kit includes dustbrushes and recessed door post with integral bumpers for a professional finish. What is a jamb kit? View explanation and see parts list here.
We reserve the right to supply jambs with alternative wood/finish*
Parts List with Images  View Note: this product does not include a door panel.
OPTIONAL ACCESSORIES:
BIAS® soft-close with anti-slam, BIAS® DS Bi-directional soft-close with anti-slam, self-closing mechanism
FREE shipping on stock accessories and door furniture ordered with this product.
GUARANTEE:
15 year guarantee on the complete Eclisse steel pocket system and runners.
NOTE:
When fitting flush pull handles we recommend the stop be regulated so the door protrudes from the pocket to avoid risk to fingers. Should the door be adjusted to enter the pocket completely we do not accept any liability.
DOOR PANEL WEIGHT: 100kg (150kg available on request)
BESPOKE SIZING AVAILABLE?: Yes- Max door panel width 2026mmm; Max door panel height 2910mm (only currently available in 100 & 125mm finished wall thickness other sizes coming soon)
DOOR THICKNESS: 35 – 44mm
FINISHED WALL THICKNESS: 95, 100, 115, 125mm or 140mm (90mm frame double boarded)
SYSTEM TYPE: For use with timber doors
JAMB KIT SUPPLIED?: Yes- the jamb kit made comes with a beechwood veneer* that is unfinished and paint/stain ready.
DOOR SUPPLIED?: No- you can use a standard UK or ROI  door panel size
DOWNLOADS
 SIZING CHART & TECHNICAL SPEC: Download
 INSTRUCTIONS: 70/90 Frame  70/90 Door Installation |  75/100mm Frame
CAD DRAWING (.dwg): 95mm finished wall thickness | 115mm finished wall thickness  |  100mm finished wall thickness  |   125mm finished wall thickness
NBS SPEC: Download
BIM: 70/90mm System | 75/100mm System
TECH TIPS:
1) Instructions on how to remove the door from an Eclisse Classic Pocket Door System – Download PDF.
2) Video on how to extract the track.  View (NB. To access the track you will need to follow the instructions above on how remove the door first. You may also need to adjust the door stop to access one of the screws).

* We reserve the right to supply jambs with an alternative wood/finish.
